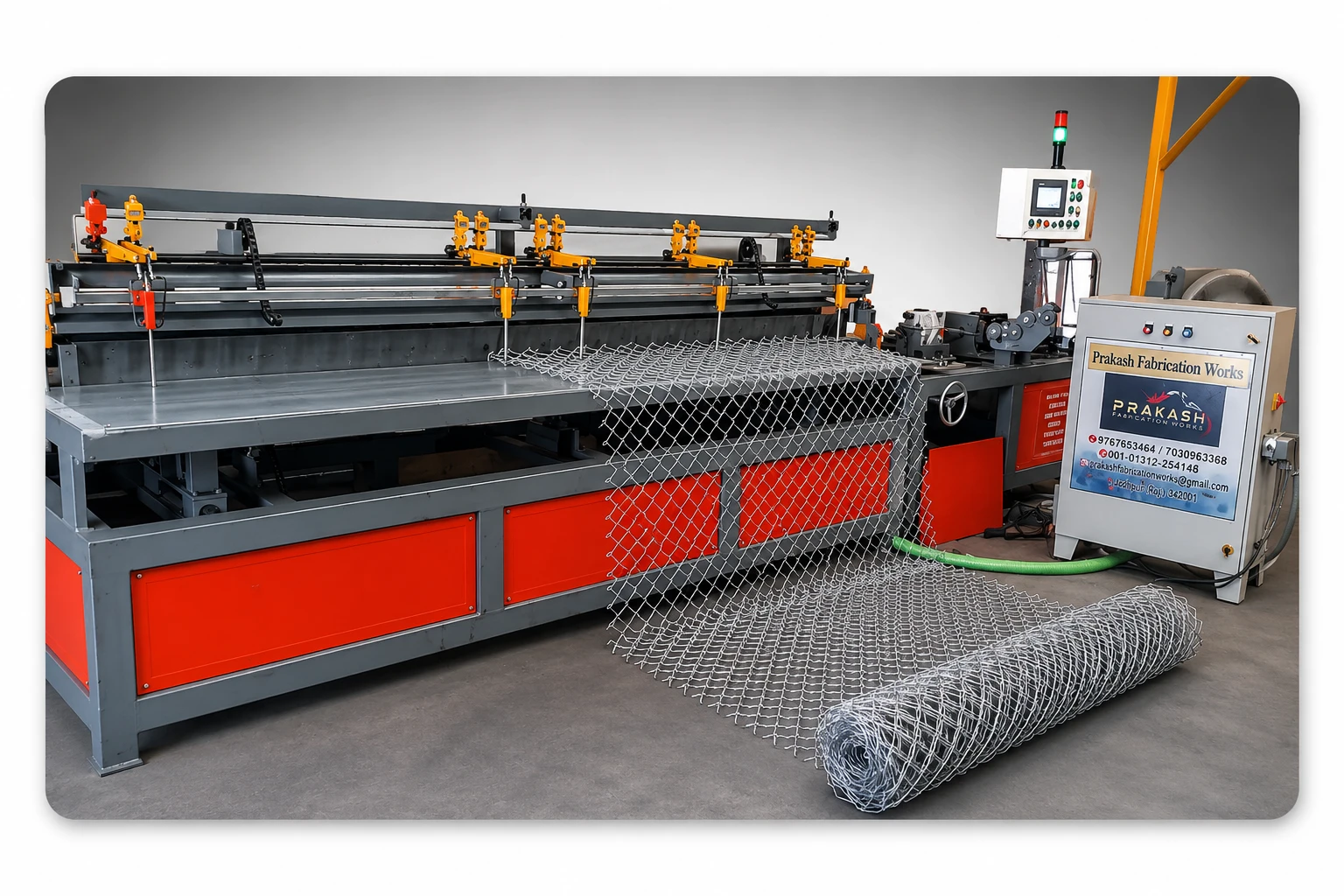

Semi Automatic Cutting + Viewing Chain Link Fencing Machine
Synchronized cutter and viewing belt. Continuous automatic winding with Hindustan 1440 RPM motors. Single operator console.
ISO 9001:2015
CE Certified
Semi Automatic Cutting + Viewing Chain Link Fencing Machine
Rs. 3,50,000 + 18% GST
+ 18% GST | FOB Pune
800 kg/day
Output Rate
1.6–4 mm
Wire Range
16 ft max
Weave Width
The Semi Automatic Cutting + Viewing Chain Link Fencing Machine (Model Q25) is a high-performance system designed with a synchronized automatic cutter and viewing belt. Utilizing robust Hindustan 1440 RPM motors, it offers continuous automatic winding and a high production capacity of 800 kg per day.
Built for industrial durability, the machine is operated via a single console, requiring only a single operator. It comes standard with 2", 3", and 5" dies and supports adjustable weaving widths from 600 mm up to 3700 mm, handling Galvanized GI and PVC Coated steel wires efficiently.
- Hindustan 1440 RPM heavy-duty motor (3HP power requirement)
- Synchronized auto-cutting system with integrated viewing table
- Comes with 2", 3", and 5" standard production dies included
- Highly adjustable mesh sizes and weave widths up to 16 feet
| Model | Q25 |
| Capacity / Output | 800 kg / Day |
| Wire Diameter | 1.6 mm – 4.0 mm |
| Mesh Opening | 25 mm – 150 mm (1" to 6") |
| Weaving Width | 600 mm – 3700 mm (4' to 16') |
| Die Size | 2", 3", and 5" Die |
| Raw Material | Galvanized Wire & PVC Coating |
| Motor Specification | Hindustan 1440 RPM (3 HP) |
| Voltage | 415 V / 50 Hz (Three Phase) |
| Machine Dimensions | 4.4m × 1.7m × 2.5m |
| Weight | 1500 kg (approx) |
| Manpower | 1 Operator |
| Machine RPM | 1440 per min |
- Hindustan 1440 RPM Motor (3HP Power Requirement)
- Synchronized Auto Cutting and Viewing Belt System
- 2", 3", and 5" Production Dies Included
- Handles Carbon Galvanized and PVC Coated wires
- Wide adjustable weaving width from 600 mm to 3700 mm (4' to 16')
- Adjustable mesh opening sizes from 25 mm to 150 mm (1" to 6")
- High capacity daily output of 800 kg per day
- Single operator manpower requirement
Prakash Industries — Machine Brochure
About This Machine
Overview: The Semi Automatic Cutting + Viewing Chain Link Fencing Machine (Model Q25) is an advanced, high-performance industrial wire weaving line featuring a synchronized auto-cutter and viewing belt, operated with Hindustan 1440 RPM motors.
Working Process: Galvanized or PVC-coated wire is continuously drawn from pay-off stands, wrapped around a high-precision winding die to form interlocking spirals, cut to desired length automatically, and rolled into compact mesh bundles.
Manufacturing Quality: Heavy-duty carbon steel frame with a weight profile of approximately 1,500 kg to ensure zero vibration and high-speed stability. Proudly built and tested at our Kandali factory in Pune, Maharashtra.
Industries Used
Jali manufacturing plants, perimeter security fence production, border fencing fabrication, and large-scale industrial wire netting units.
Key Advantages
High speed production rates, fully automated PLC controls requiring only 1 operator, zero-touch knuckle and twisting edge processing, and multi-wire type support.
Quality & Standards
Equipped with international-grade Panasonic servo motor systems, INVT frequency drives, smart diagnostic PLC touch interfaces, and wire-tangle auto shutdown sensors.
Support Included
Includes complete on-site installation, 12 months mechanical warranty, and 2 days hands-on operator training.
Machine Video Demonstration
Watch this high-capacity chain link fence weaving machine in action, showing continuous automatic feeding, twisting, and knuckling.
Frequently Asked Questions
What raw materials are required for this machine?
This machine is fully compatible with Hot-Dip Galvanized (GI) wire, PVC-Coated wire, and Mild Steel (MS) black wire.
Is on-site installation and training included?
Yes! We provide on-site machine commissioning, test run validation, and hands-on operator training for 2 days at your site.
What is the power grid requirement?
Most automatic models require a 415V Three-Phase electrical grid layout. Manual and small semi-automatic machines can be configured for 220V Single-Phase supplies.
