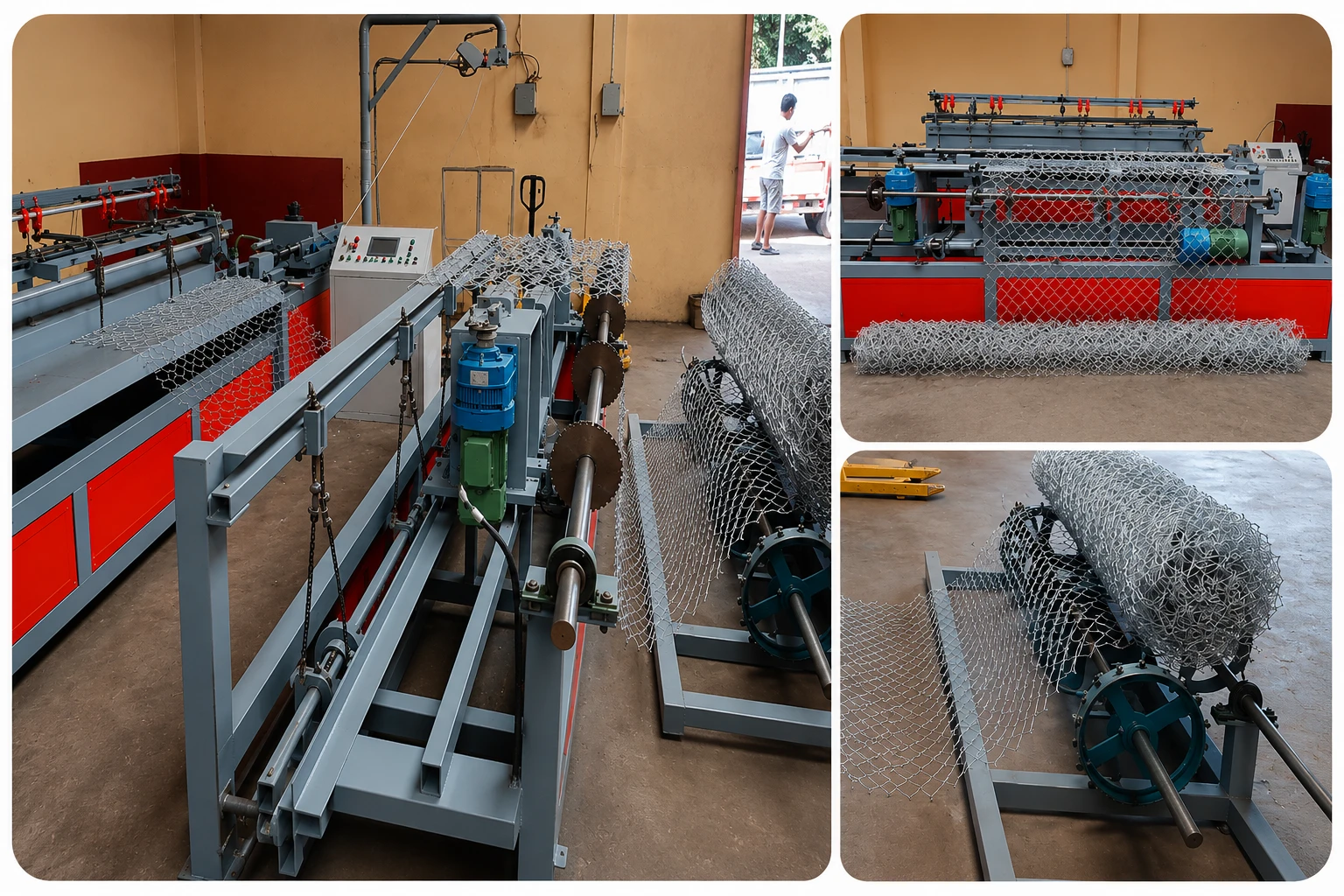

Fully Automatic Single Wire Machine
Panasonic servo motor (2000 RPM). Continuous wire feeding, knuckle bending, twisting, and mesh roll packaging automatically.
ISO 9001:2015
CE Certified
Fully Automatic Single Wire Machine
Rs. 8,50,000 + 18% GST
+ 18% GST | FOB Pune
70–100 kg/h
Output Rate
2–4 mm
Wire Range
10 ft max
Weave Width
Panasonic servo motor (2000 RPM). Continuous wire feeding, knuckle bending, twisting, and mesh roll packaging automatically.
Prakash Industries machines are built to handle continuous industrial environments. Designed by engineering professionals with premium alloys and electronic controllers to ensure maximum uptime, speed, and safety on the production floor.
- Premium grade materials with heavy-duty cast iron panels
- Highly optimized power efficiency configurations
- Comprehensive 1-year manufacturing warranty
- Designed for cottage, startup, or larger perimeter mesh manufacturing
| Model Name | Fully Automatic Single Wire Machine |
| Category | Fully Automatic Series |
| Output Rate | 70–100 kg/h |
| Wire Range | 2–4 mm |
| Width | 10 ft max |
| Manufacturer | Prakash Industries |
| Warranty | 12 Months (Manufacturing defects) |
| Location of Origin | Pune, Maharashtra, India |
- Heavy-duty PLC touchscreen controller for automated operations
- Auto knuckle bending & twisting on both sides of mesh
- Automatic length cutting sensor and roll wind spooler
- Auto-stop protection system for wire tangling or snaps
- Compatible with Galvanized (GI), PVC-coated, and Mild Steel (MS) wires
- Solid steel alloy main frame with vibration dampening
- Variable speed drives for optimized thickness matching
- On-site machine installation and operator training
Prakash Industries — Machine Brochure
About This Machine
Overview: The Fully Automatic Single Wire Machine is an advanced, high-performance industrial wire weaving line designed to automate the process of manufacturing high-quality chain link fencing mesh.
Working Process: Galvanized or PVC-coated wire is continuously drawn from pay-off stands, wrapped around a high-precision winding die to form interlocking spirals, cut to desired length automatically, and rolled into compact mesh bundles.
Manufacturing Quality: Heavy-duty carbon steel frame with a weight profile of approximately 3,000–3,500 kg to ensure zero vibration and high-speed stability. Proudly built and tested at our Kandali factory in Pune, Maharashtra.
Industries Used
Jali manufacturing plants, perimeter security fence production, border fencing fabrication, and large-scale industrial wire netting units.
Key Advantages
High speed production rates, fully automated PLC controls requiring only 1 operator, zero-touch knuckle and twisting edge processing, and multi-wire type support.
Quality & Standards
Equipped with international-grade Panasonic servo motor systems, INVT frequency drives, smart diagnostic PLC touch interfaces, and wire-tangle auto shutdown sensors.
Support Included
Includes complete on-site installation, 12 months mechanical warranty, and 2 days hands-on operator training.
Machine Video Demonstration
Watch this high-capacity chain link fence weaving machine in action, showing continuous automatic feeding, twisting, and knuckling.
Frequently Asked Questions
What raw materials are required for this machine?
This machine is fully compatible with Hot-Dip Galvanized (GI) wire, PVC-Coated wire, and Mild Steel (MS) black wire.
Is on-site installation and training included?
Yes! We provide on-site machine commissioning, test run validation, and hands-on operator training for 2 days at your site.
What is the power grid requirement?
Most automatic models require a 415V Three-Phase electrical grid layout. Manual and small semi-automatic machines can be configured for 220V Single-Phase supplies.
