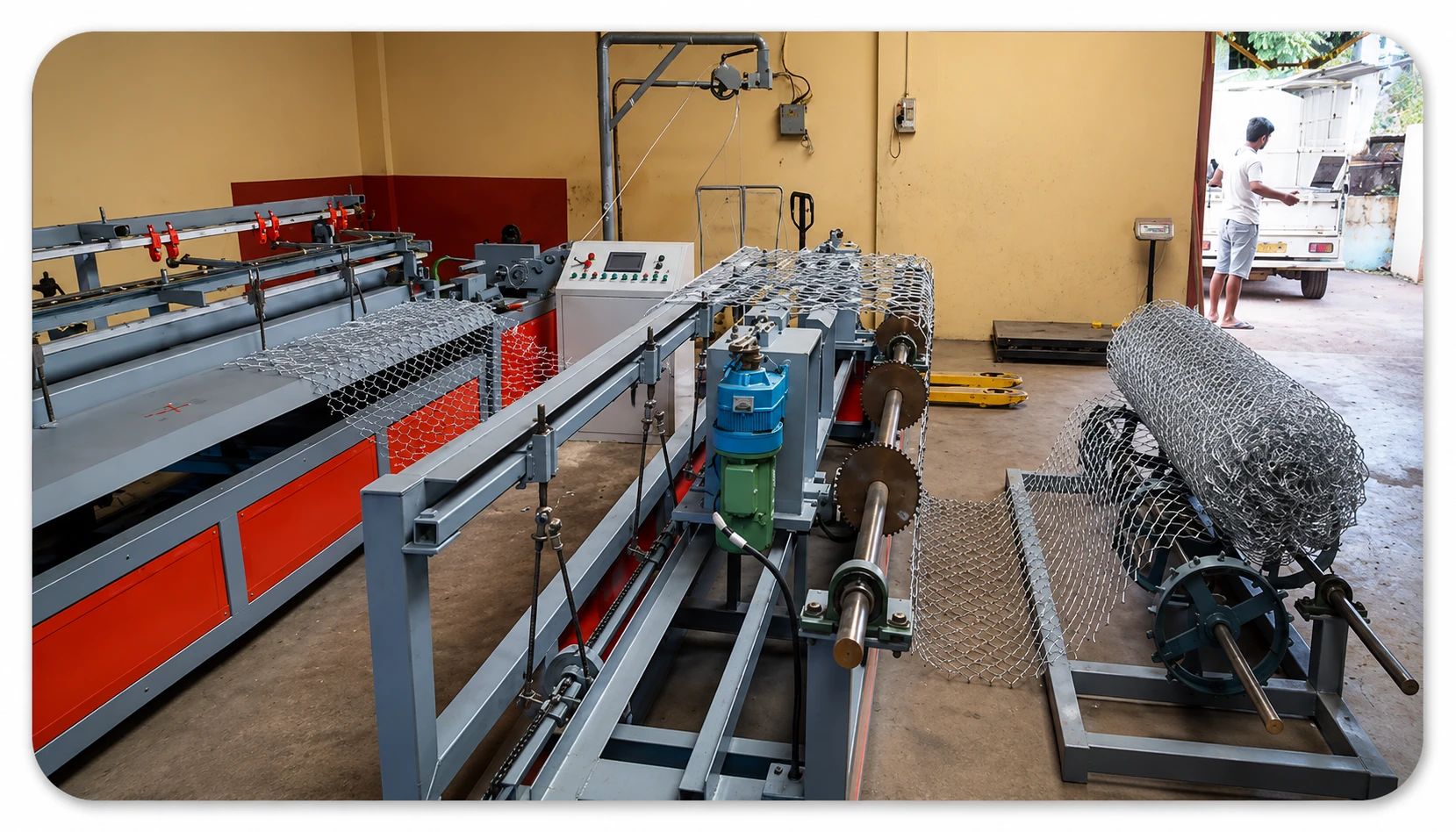

Auto Single Wire (INVT) Machine
INVT 5kw drive system. Auto feeds, cuts, twists, and rolls wire mesh continuously. Requires only one operator for the entire setup.
ISO 9001:2015
CE Certified
Auto Single Wire (INVT) Machine
Rs. 8,00,000 + 18% GST
+ 18% GST | FOB Pune
N/A
Output Rate
2–4 mm
Wire Range
10 ft
Weave Width
The Auto Single Wire (INVT) Machine pairs a 5kW INVT frequency drive with a fully automated weaving line, giving manufacturers precise speed control over wire feeding, cutting, twisting, and rolling with a single operator managing the whole process.
The INVT drive regulates motor speed continuously as wire feeds into the winding die, holding consistent spiral tension even as wire thickness or mesh size changes — reducing the manual re-tuning needed between production runs. For buyers comparing drive technology, this model is the balanced middle ground between the lower-cost Hindustan motor version and the premium Panasonic servo line.
- INVT 5.0 kW Frequency Drive System
- Variable-speed drive tuning and speed regulation
- Delta PLC touchscreen controller
- Reduced setup and changeover times
| Model Name | Auto Single Wire (INVT) Machine |
| Category | Fully Automatic Series |
| Wire Range | 2–4 mm |
| Motor | INVT 5kw |
| Width | 10 ft |
| Manufacturer | Prakash Industries |
| Warranty | 12 Months (Manufacturing defects) |
| Location of Origin | Pune, Maharashtra, India |
- Heavy-duty PLC touchscreen controller for automated operations
- Auto knuckle bending & twisting on both sides of mesh
- Automatic length cutting sensor and roll wind spooler
- Auto-stop protection system for wire tangling or snaps
- Compatible with Galvanized (GI), PVC-coated, and Mild Steel (MS) wires
- Solid steel alloy main frame with vibration dampening
- Variable speed drives for optimized thickness matching
- On-site machine installation and operator training
Prakash Industries — Machine Brochure
Quick Summary: Auto Single Wire (INVT) Machine by Prakash Industries is an industrial machine engineered for chain link fencing production. It is built in Pune, India, and offers reliable, continuous performance.
About This Machine
Overview: The Auto Single Wire (INVT) Machine integrates a variable speed INVT drive controller for optimized wire mesh weaving speed and tension control.
Working Process: Raw wire strands feed into the customized winding dies, are woven into standard mesh grids, and are processed with automated knuckling, cutting, and packaging.
Industrial Applications: Best suited for custom jali mesh fabrication facilities, boundary security lines, and medium-scale fence roll distributors.
Industries Used
Jali manufacturing plants, perimeter security fence production, border fencing fabrication, and large-scale agricultural wire netting units.
Key Advantages
Variable speed drive tuning, auto-stop wire diagnostics, and single-operator console control.
Quality & Standards
INVT 5kW frequency drive system, solid vibration-dampening alloy frame, and automatic shutdown protections.
Support Included
Includes on-site machinery commissioning, 12 months warranty on structural frame, and 2 days hands-on operator training.
Machine Video Demonstration
Watch this high-capacity chain link fence weaving machine in action, showing continuous automatic feeding, twisting, and knuckling.
Why Choose This Model
INVT Drive vs Hindustan Motor vs Panasonic Servo
The INVT-driven machine is the best fit for buyers who want better speed control and more stable operation across different wire sizes, without moving all the way to the premium servo motor category. It is a practical middle tier for workshops that care about changeover flexibility and electrical stability.
What raw materials are required for this machine?
This machine is fully compatible with Hot-Dip Galvanized (GI) wire, PVC-Coated wire, and Mild Steel (MS) black wire.
Is on-site installation and training included?
Yes! We provide on-site machine commissioning, test run validation, and hands-on operator training for 2 days at your site.
What is the power grid requirement?
Most automatic models require a 415V Three-Phase electrical grid layout. Manual and small semi-automatic machines can be configured for 220V Single-Phase supplies.
