Auto Single Wire (Hindustan) Machine
Hindustan 1440 RPM motor. Automated knuckle edge bending, twisting, and mesh roll winding. High-volume commercial output.
ISO 9001:2015
CE Certified
Auto Single Wire (Hindustan) Machine
Rs. 6,50,000 + 18% GST
+ 18% GST | FOB Pune
N/A
Output Rate
2–4 mm
Wire Range
10 ft
Weave Width

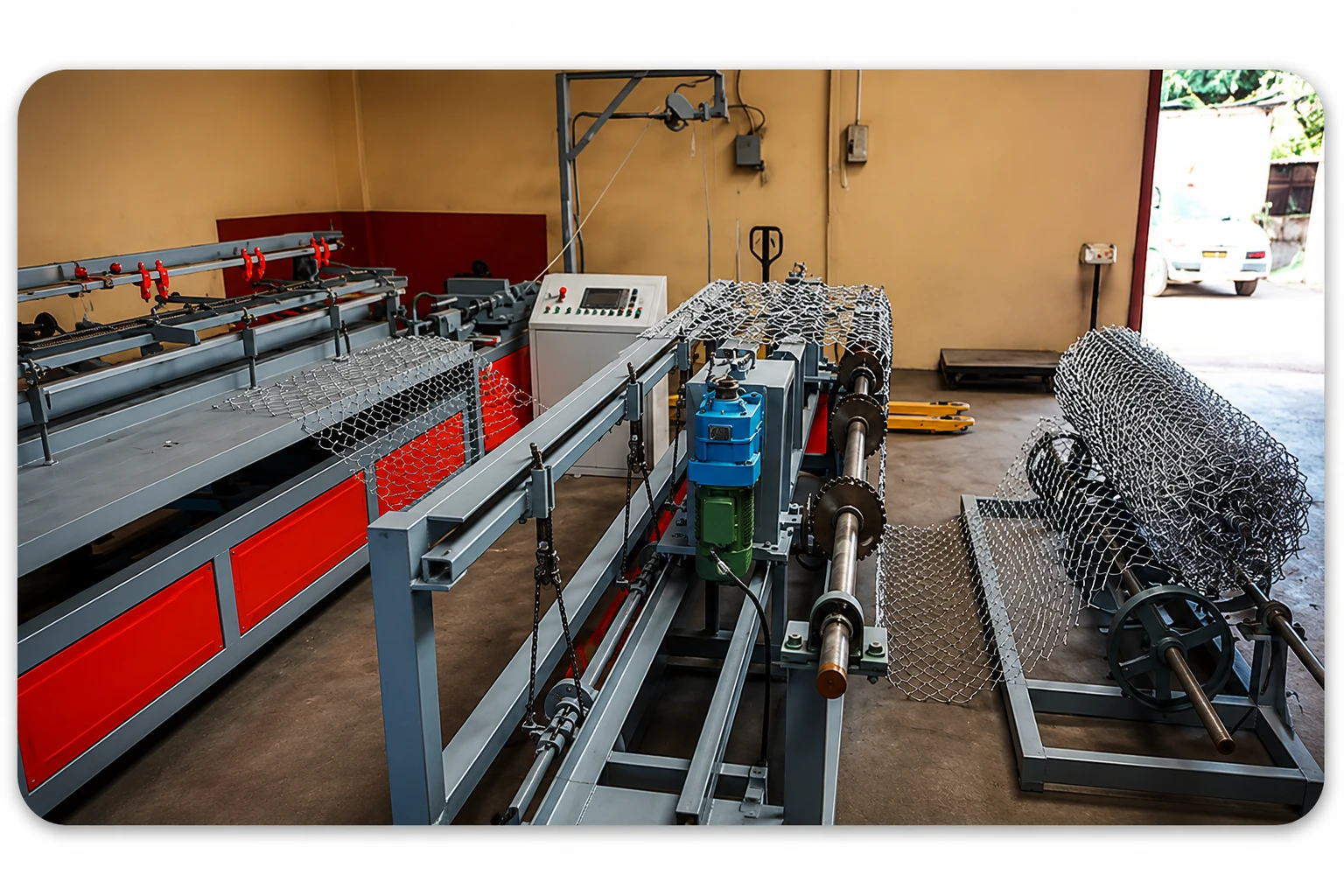

The Auto Single Wire (Hindustan) Machine is a fully automatic weaving line built around a Hindustan 1440 RPM motor, offering commercial-grade automation at a lower entry price than the servo-driven models in the range.
Wire is drawn continuously from pay-off stands, formed into interlocking spirals on a precision winding die, knuckle-bent and twisted at both edges, then automatically cut to length and rolled — all coordinated through a PLC touchscreen controller, needing only one operator. It is the practical middle step for manufacturers moving up from semi-automatic production, especially when local servicing and simpler maintenance matter more than premium servo precision.
- Hindustan 1440 RPM Domestic Motor
- Fully automatic PLC touchscreen control panel
- Single operator running the entire process line
- Auto-stop safety protection on wire tangling or snaps
| Model Name | Auto Single Wire (Hindustan) Machine |
| Category | Fully Automatic Series |
| Wire Range | 2–4 mm |
| Total Power | 15 HP |
| Width | 10 ft |
| Manufacturer | Prakash Industries |
| Warranty | 12 Months (Manufacturing defects) |
| Location of Origin | Pune, Maharashtra, India |
- Heavy-duty PLC touchscreen controller for automated operations
- Auto knuckle bending & twisting on both sides of mesh
- Automatic length cutting sensor and roll wind spooler
- Auto-stop protection system for wire tangling or snaps
- Compatible with Galvanized (GI), PVC-coated, and Mild Steel (MS) wires
- Solid steel alloy main frame with vibration dampening
- Hindustan 1440 RPM high-torque motor
- On-site machine installation and operator training
Prakash Industries — Machine Brochure
Quick Summary: Auto Single Wire (Hindustan) Machine by Prakash Industries is an industrial machine engineered for chain link fencing production. It is built in Pune, India, and offers reliable, continuous performance.
About This Machine
Overview: The Auto Single Wire (Hindustan) Machine utilizes a reliable domestic Hindustan motor to drive continuous fence weaving and automatic mesh roll winding under PLC control.
Working Process: Raw wire is fed into the custom forming die to form diamond mesh spirals, knuckled or twisted at the outer boundaries, cut automatically by length count, and package-rolled.
Industrial Applications: Widely deployed in agricultural farm setups, residential border fencing, highway dividers, and general jali wire mesh distribution yards.
Industries Used
Jali manufacturing plants, perimeter security fence production, border fencing fabrication, and large-scale agricultural wire netting units.
Key Advantages
High-torque mechanical weaving driven by domestic Hindustan motor, automatic edge knuckle/twist, and single-operator efficiency.
Quality & Standards
Heavy-duty Hindustan motor integration, solid vibration-dampened frame, and automatic overload/wire tangle shutdown protections.
Support Included
Includes on-site machinery commissioning, 12 months warranty on structural frame, and 2 days hands-on operator training.
Machine Video Demonstration
Watch this high-capacity chain link fence weaving machine in action, showing continuous automatic feeding, twisting, and knuckling.
Why Choose This Model
Hindustan Motor vs INVT vs Panasonic Servo
This model is best for buyers who want full automation without paying for the premium Panasonic servo tier. Compared with the INVT model, it leans more on simple domestic motor serviceability and lower acquisition cost; compared with the Panasonic servo machine, it is positioned as a value-focused automatic line for everyday mesh production.
What raw materials are required for this machine?
This machine is fully compatible with Hot-Dip Galvanized (GI) wire, PVC-Coated wire, and Mild Steel (MS) black wire.
Is on-site installation and training included?
Yes! We provide on-site machine commissioning, test run validation, and hands-on operator training for 2 days at your site.
What is the power grid requirement?
Most automatic models require a 415V Three-Phase electrical grid layout. Manual and small semi-automatic machines can be configured for 220V Single-Phase supplies.
